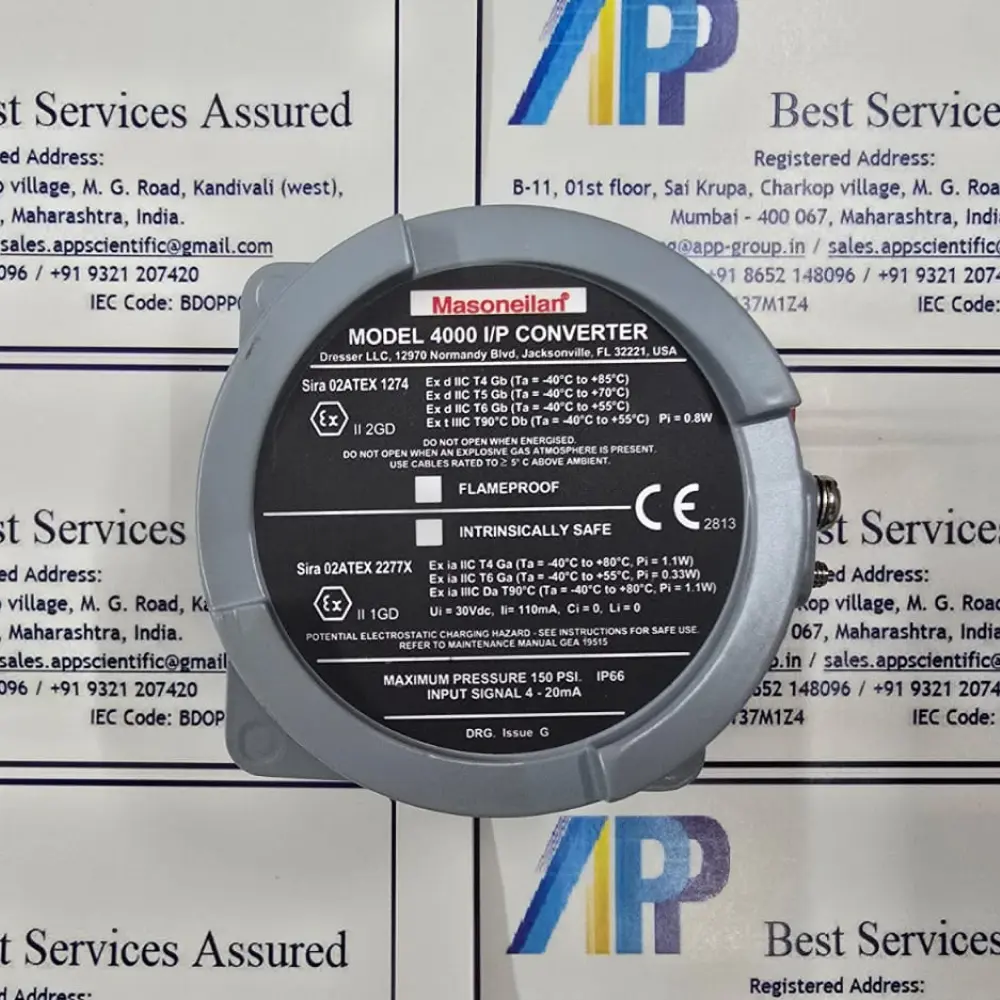

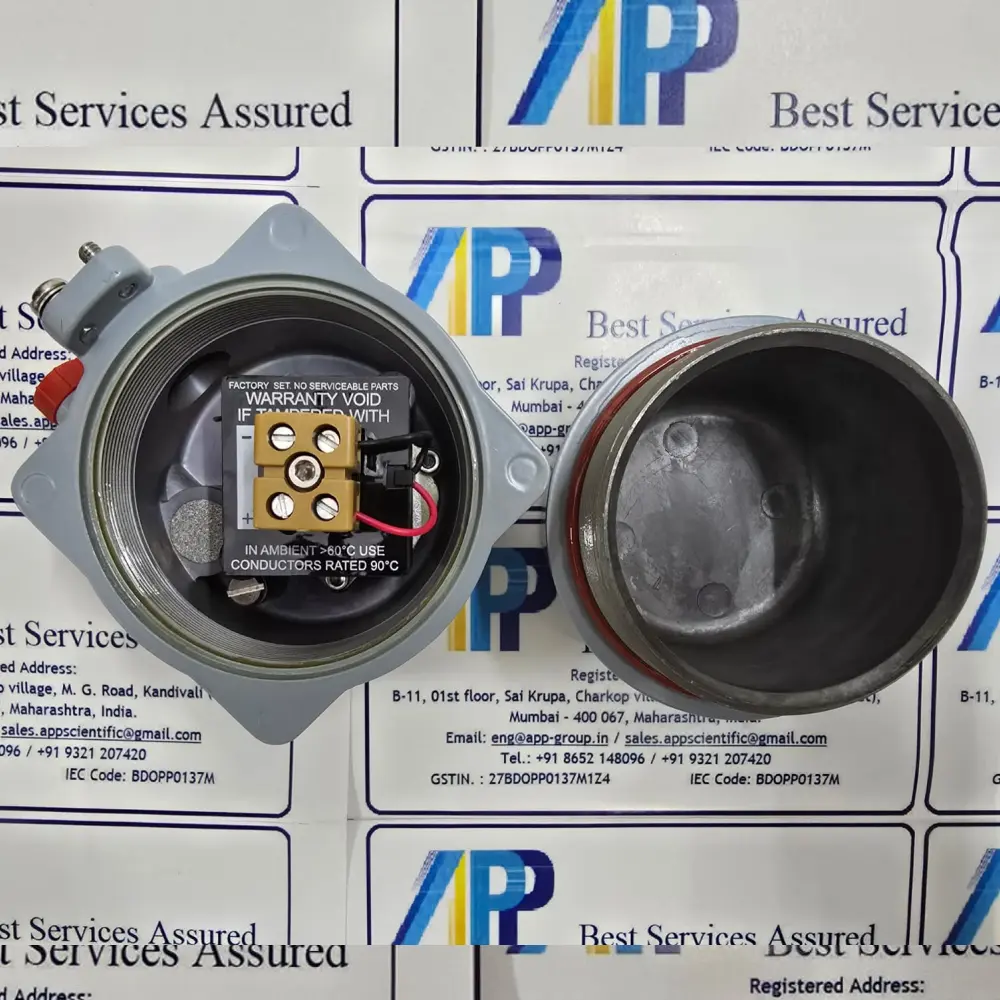

Masoneilan Dresser 4000 I/P Converter Module
Converter, Industrial Automation
The Masoneilan 4000 Converter Module transforms an electrical input signal into a proportional pneumatic output, ensuring seamless communication between electronic control systems and pneumatic actuators. It plays a crucial role in enabling precise process control, making it essential for maintaining consistent operation, particularly in environments where pneumatic control systems are prevalent.
Specification | Details |
|---|---|
Product Name | Masoneilan 4000 Converter Module |
Manufacturer | Masoneilan |
Brand | Dresser |
Model | Model 4000 I/P Converter |
Type | Type 4000 |

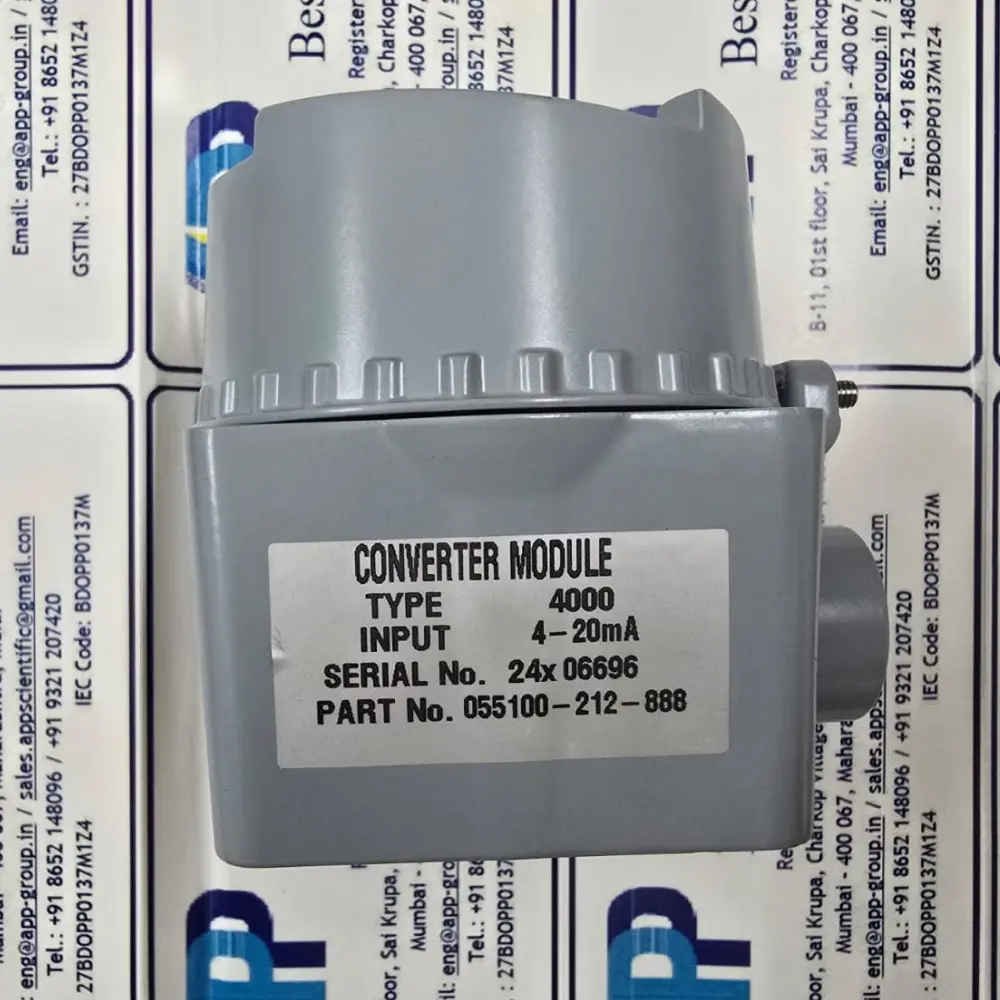

Part Number | 055100-212-888 |
Certification | Sira 02Atex 1274 |
ATEX Marking | II 2Gd |
ATEX Code (T4) | Ex D IIC T4 Gb (Ta= -40°C to +85°C) |
ATEX Code (T5) | Ex D IIC T5 Gb (Ta= -40°C to +70°C) |
ATEX Code (T6) | Ex D IIC T6 Gb (Ta= -40°C to +55°C) |
ATEX Dust Code | Ex T IIIC T90°C Db (Ta= -40°C to +55°C) |
Power Input | Pi = 0.8W |
Safety Rating | Intrinsically Safe/Flameproof/Type 'n' |
Additional Certification | Sira 02Atex 2277X |
Intrinsic Safety Rating | II 1Gd |
Intrinsic Safety Code (T4) | Ex ia IIC T4 Ga (Ta= -40°C to +80°C, Pi= 1.1W) |
Intrinsic Safety Code (T6) | Ex ia IIC T6 Ga (Ta= -40°C to +55°C, Pi= 0.33W) |
Intrinsic Safety Dust Code | Ex ia IIIC Da T90°C (Ta= -40°C to +80°C, Pi= 1.1W) |
Electrical Parameters | Ui= 30Vdc, Ii= 110mA, Ci= 0, Li= 0 |
Additional Certification | Sira 02Atex 4279X |
Type 'n' Safety Rating | II 3G |
Type 'n' Code | Ex Na Nl IIC T4 Gc (Ta= -40°C to +80°C) |
Electrical Parameters (Type 'n') | Ui= 30Vdc, Ci= 0, Li= 0 |
Maximum Pressure | 150 PSI |
Ingress Protection | IP66 |
Input Signal | 4-20 mA |
Explosion Protection | Ex ia: Cl I, Gp ABCD; Cl II, Gp EFG; Cl III |
Temperature Code | T6 at 55°C, T4A at 85°C |
Input Parameters | Input: 30mA Max, 28V DC Max |
Ingress Protection Rating | IP66/Type 4X |
Other Reference | 571.05.52.040 |
Country | USA |
Weight | 660 g |
Features
High Accuracy:
The Masoneilan 4000 is designed for tight accuracy, ensuring the signal gets converted with minimal error while giving the best possible process control.
Robust Design:
The Masoneilan 4000 Converter Module is built to withstand the most adverse industrial conditions. It boasts a construction that ensures long-lasting performance is assured.
Versatile Compatibility:
This module can be used with various control systems, thus making it a flexible choice for various industrial applications.
Compact Design:
The compact design of Masoneilan 4000 makes it easily mountable in restricted areas, thus being a very pragmatic solution for modern control panels.
Low Maintenance:
The module is well-built with minimal maintenance; reduced time on downtime and other maintenance expenses.
